Description

The Diamondback is a commercially built and consumer priced workhorse. The 23 horsepower Kawasaki FR691V engine and Hydro-Gear ZT-3200 transmission guarantees a fast, smooth ride every time. With a three-year limited warranty, you will come to love the reliability, exceptional value and world-proven performance that Worldlawn provides.

Fabricated steel deck with front reinforcement
Triple layer spindle support
10-year deck shell warranty
Cutting height positions from 1.0" to 4.75"
9.5 gallon fuel tank
23" drive tires, 13x6 front tires

Specifications

Brand:	Worldlawn
Cutting Width:	48"
Engine Type:	4-Stroke

More Specifications

Length	77.4"
Width	60"
Width w/ Deflector Up	49"
Wheelbase	50.5"
Wheel Track Width	47"
Weight	920 lbs.
Front Tires	13 - 5.00 x 6 smooth
Rear Tires	23 - 9.50 x 12 turf
Deck Material	8 ga. steel
Cut Width	48"
Cutting Heights	1.5" - 4.75"
PTO	Electric
Fuel Capacity	9.5 gallon
Engine Brand	Kawasaki
Engine HP	23
Forward Speed	9 mph
Blades	3 - 16.25"
Transmission	Hydro-Gear ZT-3200

Replaces

Worldlawn WYDB48FR691V32 48" Diamondback Zero-Turn Riding Lawn Mower w/ 23hp Kawasaki FR691V replaces these OEM part numbers:

Fits These Models

Additional Information

Product Questions

Customer Questions

Worldlawn WYDB48FR691V32 48" Diamondback Zero-Turn Riding Lawn Mower w/ 23hp Kawasaki FR691V currently has 0 product question(s).

Reviews

Write a review!

Warning Cancer and Reproductive Harm www.P65Warnings.ca.gov

Worldlawn Lawn Mowers & Replacement Parts

This is a genuine Wordlawn / Encore product and Sohars is an authorized Worldlawn & Encore dealer.

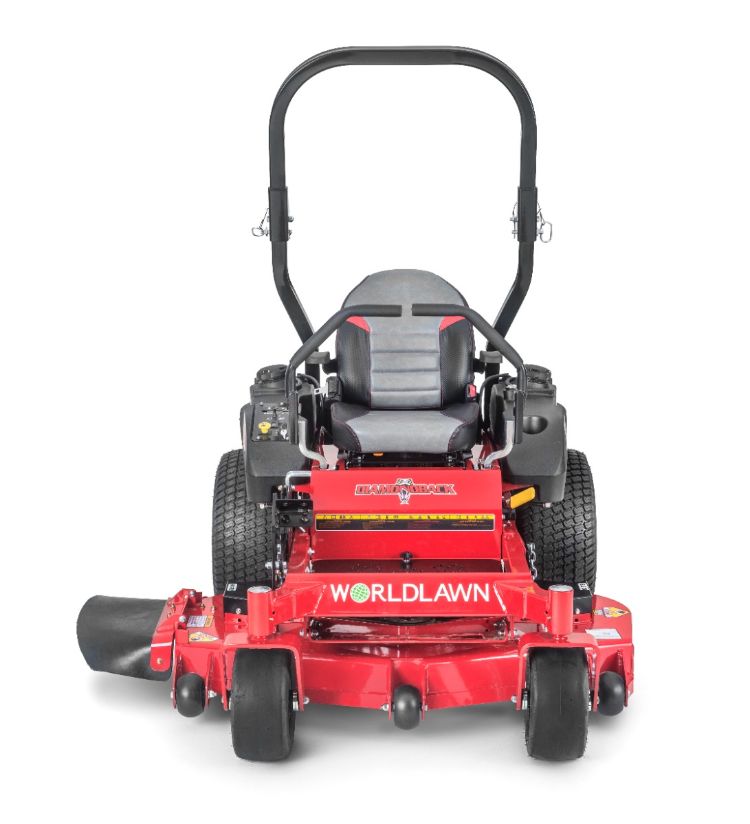

Worldlawn WYDB48FR691V32 48" Diamondback Zero-Turn Riding Lawn Mower w/ 23hp Kawasaki FR691V

Worldlawn

WYDB48FR691V32

Introducing the Worldlawn WYDB48FR691V32 48 Diamondback Zero Turn Riding Lawn Mower with 23HP Kawasaki FR691V engine. Say goodbye to traditional riding mowers and elevate your lawn care with the powerful and efficient WYDB48FR691V32. Tackle any terrain with ease and precision, thanks to its zero turn capabilities. Trust in the trusted brand of Worldlawn for a flawless mowing experience. Upgrade to the WYDB48FR691V32 today and experience the difference.

Price: $6,369.00
