4-Blade Impeller
FABRICATED AND BALANCED, 25-INCH, 4-BLADE IMPELLER

Within the unit's 10.5"³-wide housing is a welded-steel impeller with 1/2"³-thick steel blades. Dynamically balanced for reduced vibration, longer life and less stress on the engine, these loaders boast an effective, high-output (35BV = up to 6,781 CFM; 37CH = up to 6,909 CFM; 49KBD = up to 7,318 CFM), debris-reducing design.

Locking Boom Arm and Intake Nozzle
SAFE AND CONVENIENT TRANSPORT

Transport lock safely secures the boom arm and hose when not in use; nylon bearing delivers smooth movement. A transport pin locks the nozzle to the loader to help protect the hose during transportation.

Ambidextrous Nozzle Handle
EASY HANDLING FROM EITHER SIDE: THE CHOICE IS YOURS

Padded, large-diameter handle is designed for increased leverage and easy maneuverability.

16" Steel Intake Nozzle
TAKE IT ALL IN

HUGE, replaceable intake nozzle makes debris pickup easy.

Adjustable Tongue and Hitch
FIT TO YOUR TRUCK "“ LONG OR SHORT, HIGH OR LOW

Choose from three different tongue lengths to best fit your specific application. A height-adjustable hitch gives the best fit your truck. A 2 5/16"³ ball coupler comes standard on gas-powered units, but will accept a pintle hitch. Diesel-powered unit comes with standard pintle hitch, but will accept a 2 5/16"³ ball coupler.

Built-In Tool Holder
KEEP YOUR RAKES, BROOMS AND SHOVELS WITHIN EASY REACH

Built-in, 3-hole tool holder with rubber rings protects handles from damage.

Large-Capacity Fuel Tank With Built-In Gauge
HOURS AND HOURS OF RUN TIME

High-capacity, 8.5-gallon, steel fuel tank with large filler neck for easy filling keeps you on the job. Built-in fuel gauge adds convenience and eliminates guesswork.

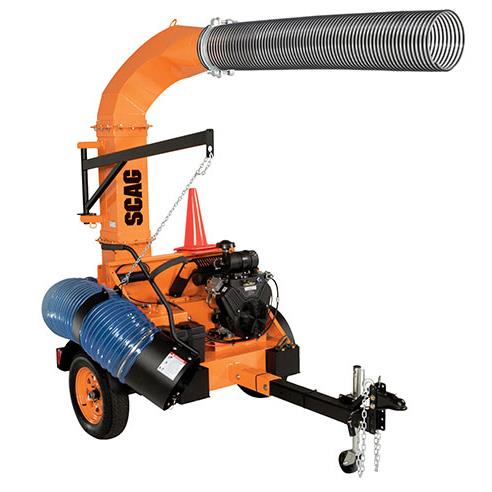

Model
TLB25-35BV

Engine
Briggs & Stratton® Vanguardâ„¢ BIG BLOCKâ„¢, V-Twin, electric start

HP
35

Fuel Capacity/Tank
8.5 gallons "“ plastic tank with built-in fuel gauge

CFM Output
6,781

Frame Construction
All-steel, welded

Impeller Construction
4-blade, 1/2"-thick blades, all-steel, welded

Impeller Mounting
Straight bore

Impeller Diameter/Width
25" / 9"

Blower Housing Construction
Removable back panel for easy impeller and wear plate access

Blower Housing Width
10.5"

Blower Housing Wear Plates
Standard: 1/4"-steel, replaceable

Intake Hose Specifications
84" length, 16"-diameter intake hose, 0.045 blue polyurethane rubber, wire helix with wearstrip

Unit Mounting
Hitch: at least 10,000 lb rating

Discharge Tube
Clear thermoplastic, 12" diameter, 84" length

Throttle Control
Commercial-grade, all-steel mechanicals

Highway Ready
Yes "“ standard roadside package, including wheel chocks and cones

Axle
Heavy-duty Dexter Torflex® axle (3,500 lb)

Tires
205 / 75 D15 highway tires with steel wheels

Trailer Width
66.75"

Accessories
Light Kit, Brake Kit

Height
121.25"

Weight
1,700 lb

Warranty
2-Year Commercial; 90-Day Rental

MSRP
$15,800
