The envy of the neighborhood
61" OR 72" CUTTING WIDTH

The envy of the industry, Velocity Plus™ decks deliver an amazing quality-of-cut and a wide, even discharge. This deck is equipped with Scag's ultra-tough cast-iron spindles featuring tapered roller bearings and a top-mounted grease fitting with a relief valve to prevent over-greasing.

Ogura PTO Clutch Brake
STRONG, ADJUSTABLE CLUTCH FOR LONG LIFE

The Ogura GT5 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 350 ft. lb. of holding strength, and an adjustable air gap for long life.

Heavy-Duty, Double-Tube Steel Main Frame
SOLID DESIGN FOR YEARS OF DEPENDABLE SERVICE

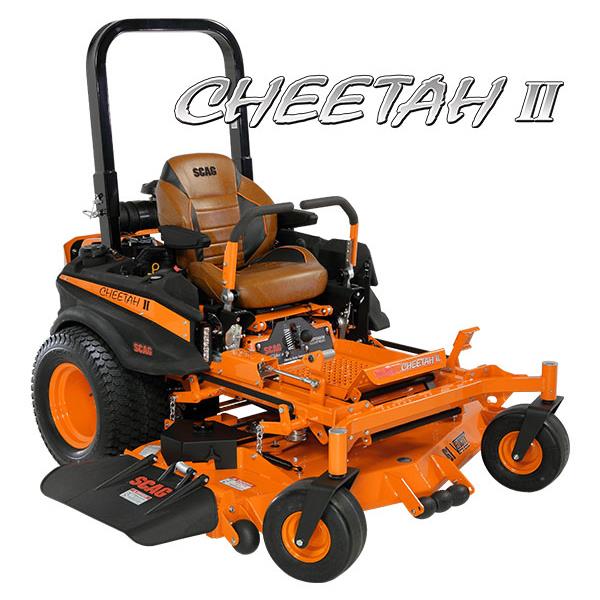

The Cheetah™ is ultra-strong and built for long life. It has a wide mower stance and extra-low center of gravity for ultimate stability and a replaceable front caster-wheel weldment.

Hydro-Gear ZT-5400 Transaxles
SPEEDS UP TO 16 MPH!

Two-speed ZT-5400 transaxle lets you choose either Low Range to travel up to 12 mph or High Range for up to 16 mph. Internal 16 cc pumps and 21 cc motors help provide speed, power and torque. The transaxle's design greatly reduces hoses and possible leak points.

Ease of Maintenance
MORE UPTIME

Flip-up components, easy-to-reach grease Zerks and many more features make servicing the Cheetah™ simple, so you can be in the shop less and on the job more.

Cheetah II Operator Suspension System
UNPARALLELED COMFORT

With five settings from soft to firm, the Operator Suspension System isolates the operator from the effects of rough terrain, providing unmatched comfort without sacrificing quality-of-cut. A coil-over shock provides effective suspension action right where it's needed, and only where it's needed. The seat's 4-point, rubber iso-mounting provides even more shock absorption, maximizing your comfort, hour after hour.

Tiger Eye Advanced Monitoring System
KEEP A REAL-TIME "EYE" ON IMPORTANT SYSTEM FUNCTIONS

Depending on the mower model and engine selection, the Tiger Eye™ Advanced Monitoring System monitors a wide variety of systems in real-time, giving you valuable information in just a glance, right from the operator's seat.

• Total Fuel Capacity
  13 gallons
• Drive Tires
  24" x 12"-12"
• Caster Tires
  13" x 6.5"-6"
• Seat
  4-point iso-mounted mid-back mounted on operator-suspension platform



• Drive System Type
  Hydro-Gear ZT5400 Transaxle. Two-Speed

• Pumps
  Internal Pump: 16 cc

• Motors
  Internal Motor: 21 cc

• Forward Ground Speed
  16 mph (high-speed)
  12 mph (low-speed)

• Reverse Ground Speed
  8 mph (high-speed)
  5 mph (low-speed)

• Parking Brake
  Foot-operated pedal

• Cutting Widths
  61" and 72"

• Type
  Velocity Plus™

• Cutting Height
  1.25" to 5" in .25" increments

• Deck Lift
  Adjustable foot-operated pedal

• Construction
  Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2" of steel. Reinforcement plates at cutter deck spindles.

• Spindles
  Cast-iron housing with tapered roller bearings.

• Blade Engagement
  Ogura GT5 (350 ft lb)
  Adjustable air-gap for extended life.
