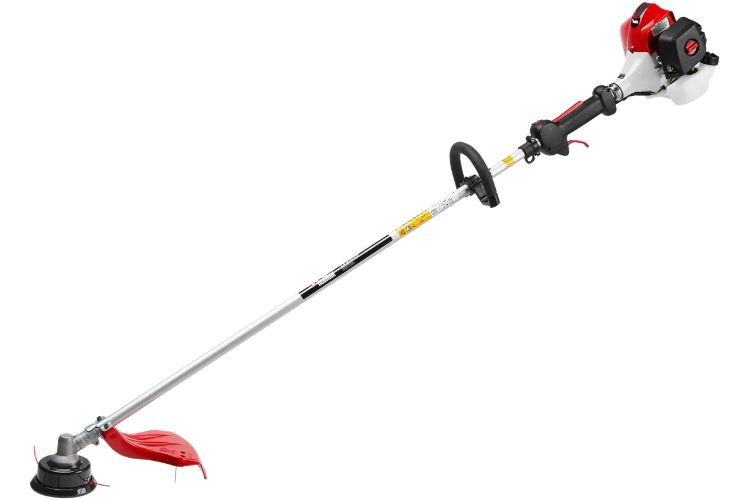

This RedMax trimmer is a powerful performer for homeowners as well as commercial contractors. The TRZ230S features a 22.5 cc, 0.94 horsepower engine and its light weight makes the trimmer extra portable for landscaping use. A Strato-Charged engine ensures up to 20% better fuel economy than a traditional two-stroke engine while increasing torque and improving emissions. A steel drive shaft with 7-point splined engagement ensures durability and quick acceleration.

Description

Specifications

Brand:	RedMax
Engine Displacement:	22.5cc
Engine Size:	0.94hp
Engine Type:	2-Stroke
Fuel Capacity:	0.17 gallon
Handle Type:	Standard
Power Source:	Gasoline
Starter Type:	Recoil Start

More Specifications

Cylinder Displacement	1.37 cu. inch
Clutch Engagement Speed (120)	4,000 rpm
Electrode gap	0.03 in
Fuel consumption	450 g/kWh
Fuel tank volume	21.64 fl oz
Idling speed	3,000 rpm
Maximum rpm output shaft	8,208 rpm
Power output	0.94 hp
Spark Plug	NGK BPMR8Y
Torque, max.	1 Nm
Torque, max. at rpm	6,500 rpm
Drive gear angle	60
Gear ratio	1.462
Exhaust emissions (CO average)	495.18 g/kWh
Weight (excl. cutting equipment)	10.14 lbs

Replaces

RedMax TRZ230S 22.5cc Straight Shaft Pro Trimmer replaces these OEM part numbers:

Fits These Models

Additional Information

Product Questions

Customer Questions

RedMax TRZ230S 22.5cc Straight Shaft Pro Trimmer currently has 0 product question(s).

Reviews

Write a review!

Warning Cancer and Reproductive Harm www.P65Warnings.ca.gov

RedMax TRZ230S 22.5cc Straight Shaft Pro Trimmer

RedMax

TRZ230S

Price: $309.99

In Stock Ships ASAP to lower 47 United States (cannot ship to California) In-store pickup/local delivery available

This is a genuine RedMax product. Sohars is an authorized RedMax dealer.
