Description

  • Dry, self-priming 3" diaphragm pump
  • 80 gal./min capacity
  • Special "rock channel" and spring loaded connecting rod help prevent case damage
  • Perfect for low volume, dry run operation

Features

  • Ideally suited for muddy water, sludge, or any water with a high percentage of solids
    Honda's WDP30 diaphragm pump is a positive displacement pumps that can pump thick sludge or water containing large solids. Instead of an impeller and a volute, diaphragm pumps use a neoprene diaphragm. The WDP30 offers an exceptional value for construction, industrial, and agricultural applications.
  • Handles solids up to 2.4"
    With 3" ports, the WDP30 can easily pass solids up to 2.4".
  • Perfect when low volume, dry run capability is required
    Because it can run without water, the WDP30 is perfect for areas with slow seepage. For example, work sites where groundwater is slowly seeping in.
  • Easy starting Honda OHV commercial engine
    The durable Honda GX series commercial grade engine is easy starting and provides ample power for the toughest conditions.
  • 3 year residential/commercial warranty
    You can rest easy, knowing your pump is covered from top to bottom for 3 full years.
  • Special "rock channel" prevents case damage
    Allows large solids and high amounts of sediment to pass through the pump without harming the components
  • Spring protected connecting rod
    Protects the pump against damage
  • Protected by Honda Oil Alert®
    Protects the pump by shutting the engine off when low oil is detected.
  • 80 gal./min capacity
  • Wheel kit standard
  • Die cast aluminum case
  • Removable priming plug allows suction head to be increased.
  • Dry self priming for convenient quick starts.
  • Air cushion chamber to reduce pulsation in the suction line
  • Convenient carrying handles
  • NPT suction and delivery ports for easy hose connections
  • Standard 2 3/8" steel strainer

Specs

  • Engine
    GX120
  • Displacement
    118 cc
  • Bore and stroke
    2.4" x 1.7"
  • Compression Ratio
    8.5:1
  • Oil Alert
    Std
  • Pump Type
    Diaphragm Self-priming
  • Priming time
    20 sec. at 20.0 ft.
  • Drive system
    Direct
  • Discharge capacity
    80 gals./min.
  • Suction port diameter
    3" NPT
  • Discharge port diameter
    3" NPT
  • Total head lift
    50 ft.
  • Suction head lift
    16 ft dry, 24 ft.primed
  • Solids handling
    2.4"
  • Fuel Capacity
    0.53 gal
  • Dimensions (LxWxH)
    31.5" x 30.5" x 25.7" (with handlebar over engine)
  • Dry weight
    163 lbs.
  • Residential Warranty
    3 years
  • Commercial Warranty
    3 years

Specifications

Brand:
Honda

More Specifications

Replaces

Honda WH15XTA 57 psi 98 GPM High-Pressure Water Pump replaces these OEM part numbers:

Fits These Models

Additional Information

Product Questions

Customer Questions
Honda WH15XTA 57 psi 98 GPM High-Pressure Water Pump currently has 0 product question(s).

Reviews

Warning Cancer and Reproductive Harm www.P65Warnings.ca.gov

This is a genuine Honda product. Sohars is an authorized Honda Power Equipment and Engines dealer.

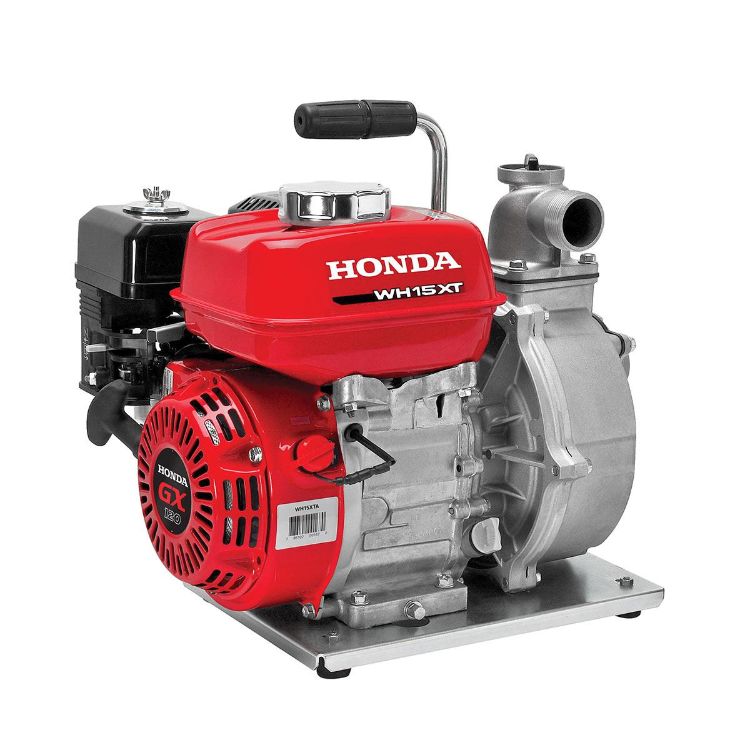

Honda WH15XTA 57 psi 98 GPM High-Pressure Water Pump

Honda
WH15XTA
Price: $699.99
