ENGINE TYPE4-stroke 2-cylinder OHV petrol engine, 90 V-twin design horizontal shaft
CYLINDER SLEEVE TYPECast iron sleeve
BORE X STROKE2 / 78 x 72 mm
DISPLACEMENT688 cm
COMPRESSION RATIO9.3 : 1
NET POWER15.5 kW ( 20.8 HP ) / 3600 rpm
CONT. RATED POWER10.5 kW ( 14.1 HP ) / 3000 rpm
12.0 kW ( 16.1 HP ) / 3600 rpm
MAX. NET TORQUE48.3 Nm ( 4.93 kgfm ) / 2500 rpm
IGNITION SYSTEMDigital CDI with variable ignition timing
CARBURATOR2-barrel, fuel cut solenoid
LUBRICATIONFull-pressure
STARTERElectric
FUEL CONS. AT CONT. RATED POWER6.0 L/h - 3600 rpm
ENGINE OIL CAPACITY1.7 Liter
DIMENSIONS (L X W X H)405 x 410 x 438 mm
DRY WEIGHT44.4 kg

Replaces

Honda 666740 GX630RHX QZB3 Red VTWIN Engine replaces these OEM part numbers:

Fits These Models

Additional Information

Product Questions

Customer Questions
Honda 666740 GX630RHX QZB3 Red VTWIN Engine currently has 0 product question(s).

Reviews

Warning Cancer and Reproductive Harm www.P65Warnings.ca.gov

This is a genuine Honda product. Sohars is an authorized Honda Power Equipment and Engines dealer.

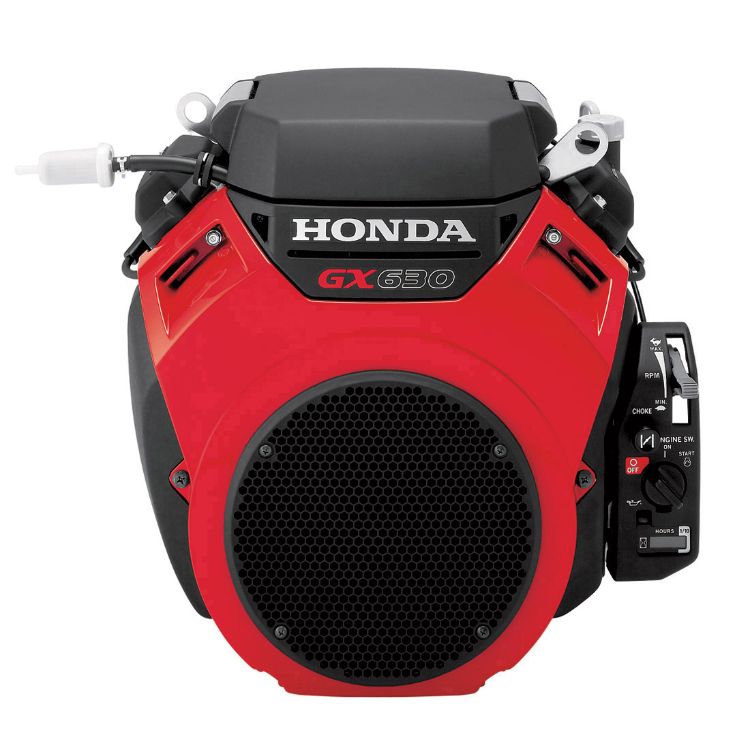

Honda 666740 GX630RHX QZB3 Red VTWIN Engine

Honda
666740

All VTWIN engines with type code TXF2 or KXF will require a Donaldson Air Cleaner (Part Number: 655630). Please contact us if you have any questions.



With experience born on the raceways and roadways and a dedication to innovation, there's plenty of reasons to insist on the new Honda GX630 V-Twin engine. There’s superior engine design, with a 90° configuration that reduces vibration and allows a compact footprint. There's superior construction, with a forged steel crankshaft and an integrated cylinder head. Fewer parts means better durability. There's a digital CDI ignition coil that ensures improved fuel economy and lowered emissions. There's even improved air cleaning, meaning that you can wait 5 times longer between filter changes. Honda even gives their engines a 3-year limited warranty.

Price: $1,890.00
