Description

Specifications

Brand:

Honda

Warranty	36 Months Private Residential; 36 Months Commercial,Rental,Institutional
Displacement Range	241cc - 390cc
Engine Brand	Honda OHV
Crankshaft Diameter	1"
Crankshaft Length	3.37"
Crankshaft End Tapped Size	N/A
Crankshaft Keyway Width	1/4"
Air Cleaner Type	Dual Element
Throttle Control	Manual
Starter Type	Recoil
PTO Height	4-11/64
Max RPM	3600
Oil Cooler	No
Carburetor Type	Float
Valve Style	OHV
Recoil Starter Position	9:00 O'Clock
Displacement	270cc
Ignition System	Digital CDI with Variable Ignition Timing
Lubrication System	Splash
Oil Capacity	38
Muffler	Yes
Fuel System	Gasoline
Governor System	Centrifugal Mass Type
Gear Reduction	6:1
Charging System	None
Choke Control	Manual

Cooling System	Air
Type	Small Engines
Fuel Pump	No
Auxiliary PTO	No
Compression Release	Yes
MFG Rated Output	7.9 Net HP
CPSC Compliant	No
Low Oil Shutdown	Yes
Low Oil Alert/Shutdown	No
Compression Ratio	8.5:1
Extended Recoil Rope	No
Oil Filter	No
Bolt Circle (in.)	None
Crankshaft Type	Gear Reduction
Oil Pump	No
Fuel Filter	Yes
Control Box	No
Cylinders (quantity)	1
Cylinder Bore Type	Cast Iron
Bore x Stroke	73 x 58 mm
Crankshaft Style	Horizontal
For Use in California	No
Crankshaft Rotation Direction (from PTO Shaft Side)	Counterclockwise
Fuel Tank Capacity	5.6
Color	Red

{"Honda":["655110"]}

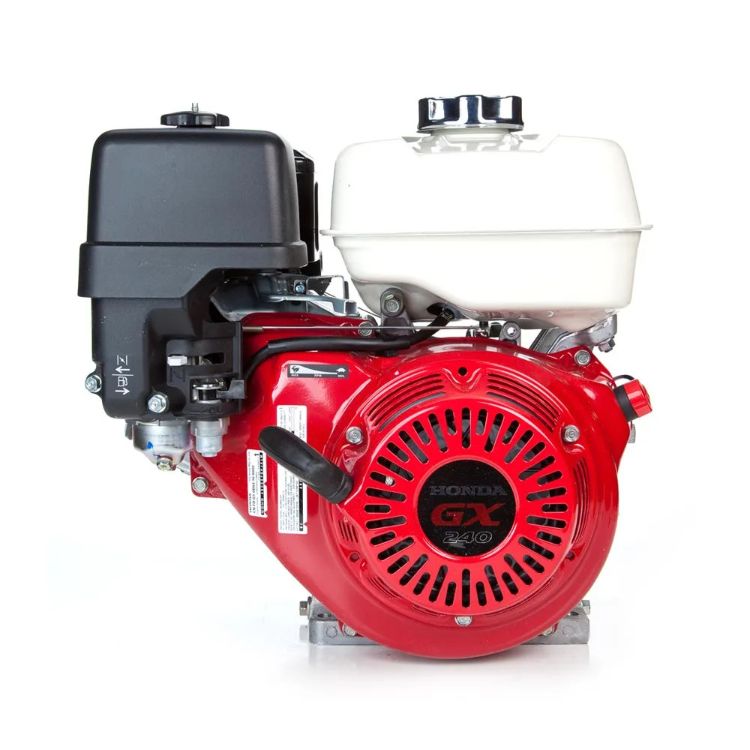

Honda 664430 GX240UT2X HA2 Red Horizontal Engine replaces these OEM part numbers:

Customer Questions

Honda 664430 GX240UT2X HA2 Red Horizontal Engine currently has 0 product question(s).

Write a review!

Warning Cancer and Reproductive Harm www.P65Warnings.ca.gov

This is a genuine Honda product. Sohars is an authorized Honda Power Equipment and Engines dealer.

Honda

664430

Fuel efficient, high output operation - precision camshaft design offers precise valve timing, optimal valve overlap, and better fuel efficiency

Smooth performance - ball bearing supported crankshaft for increased stability and lower vibration

Exceptionally quiet - multi chamber exhaust; improved camshaft and muffler reduce overall engine noise by up to 5 dB

Proven reliability - dual element air cleaner, cast iron cylinder sleeve, oil alert

Price: $774.00
