Swift and efficient, the Bobcat® AE30S aerator is capable of covering two-and-a-quarter acres per hour at ground speeds up to 7 mph.

Aeration season doesn’t last forever, that’s why you need a swift, efficient machine that saves you time while increasing your productivity. The Bobcat AE30S does just that, capable of covering two-and-a-quarter acres per hour at ground speeds up to 7 mph. Its innovative features and controls also give you the power and speed to take on the biggest jobs. It’s packed with features including an anti-vibration operator platform that can be flipped up for walk-behind applications, patented depths that create a hard limit for tine penetration, a patented cooling system that provides optimal engine temperature, and a patented chain tensioner system that automatically keeps the chains properly tightened.

Specifications

Brand:
Bobcat

More Specifications

Engine ModelKawasaki FS541V
Engine Horsepower15 hp (11.2 kW)
Engine Displacement36.8 in³
Fuel Capacity5 gal
Drive
  • Belt from engine to hydrostat input shafts
  • Hydrostatic drive to jackshaft via auto-tensioned #50 chain
  • Jackshaft to wheels and tines via (2) #50 chains
Transmission
  • Hydro-Gear ZT-3200 transaxles
  • Hydraulic cooling system
Hydraulic Oil Capacity7 qt
Forward SpeedUp to 7.4 mph
Reverse SpeedUp to 3.1 mph
Aeration SpeedUp to 3.5 mph
Tines0.75" (19 mm) formed from .08" (2 mm) hardened chrome molybdenum alloy steel
Aeration Width30"
Aeration DepthUp to 5"
Number of Tines48
Aeration Pattern3.75" x 8" (95mm x 203mm)
Tine EngagementThumb-operated tine lift switch
Down PressureUp to 700 lbs (318 kg)
Depth Adjustment
  • Hydraulic pressure control
  • (2) depth stop pins on either side of machine in 0.5" increments
ProductivityUp to 97,800 ft2/hr (9,086 m2/hr)
FrameWelded 7-gauge steel; 0.25" wall steel tubing
Front Wheels(2) 13" x 5" - 6 in smooth-tread pneumatic caster wheels
Rear Wheels(2) 18" x 6.5" - 8 in turf-tread pneumatic drive wheels
Length: Platform Up60.5"
Length: Platform Down69.5"
Width47.2"
Height48"
Weight1,235 lbs

Replaces

Bobcat AE30S 30" Stand-On Aerator w/ Kawasaki FS541V Engine replaces these OEM part numbers:

Fits These Models

Additional Information

Product Questions

Customer Questions
Bobcat AE30S 30" Stand-On Aerator w/ Kawasaki FS541V Engine currently has 0 product question(s).

Reviews

Warning Cancer and Reproductive Harm www.P65Warnings.ca.gov

This is a genuine Bobcat product. Sohars is an authorized Bobcat dealer.

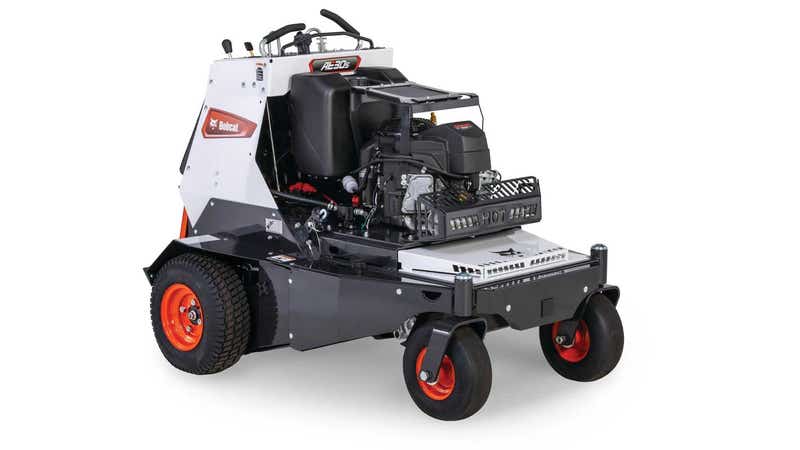

Bobcat AE30S 30" Stand-On Aerator w/ Kawasaki FS541V Engine

Bobcat
AE30S
  • 30 in. working width
  • 48 hardened alloy steel coring tines
  • Stand-on anti-vibration operator platform
  • All operating controls are located at the handlebar for convenient and easy operation
  • Patented depth stops ensure consistent and accurate results
Price: $12,999.00
