Description

Overview

The ultimate zero-turn mower for tackling big lawn jobs while also fitting in small spaces. This small but mighty TimeCutter with powerful 22 HP* V-Twin Briggs & Stratton engine and 34" IronForged® deck allows you to create both a beautiful lawn and have more time than ever to enjoy it. The mower's compact design makes for easy storage. Toro stands behind its mowers with a 3-year, 300-hour commercial engine limited warranty."  And as a Toro owner you'll have access to more than 3,000 servicing dealers across the U.S. and Canada ready to assist you. Count on it.

Features

Compact but Robust

The mower's compact design and 34" deck means you'll have no trouble mowing in tight spaces or traveling between some gates.

IronForged® Deck

Toro IronForged® fabricated deck ensures years of reliability and top performance.

Smart Speed® Technology

Take control over your mowing speed, while never sacrificing blade tip speed.

Step-Through Front End

Getting on and off the mower to pick up yard debris and other obstacles is a breeze with a step-through front end.

Storage Cubby

Now there's a convenient and safe space in your under-seat cubby to store important items.

Handcrafted Seat

Ride in style with a handcrafted seat that provides the ultimate in padding and back support.

Pro DNA

Commercial DNA courses through these machines' veins with the same technology professionals depend on. Get a beautiful, professional-looking lawn.

Compatible with the MyToro App

The MyToro app serves up essential product resources like manuals & service reminders, parts & maintenance kits, how-to videos, weather and more. To download please visit your mobile device's App Store.

Specifications

Brand:
Toro
Cutting Width:
34"
Engine Type:
4-Stroke

More Specifications

Air Filter Standard Briggs & Stratton Air Cleaner
Anti Scalp Wheels 2 Standard
Armrests Optional
Bagger Capacity 4.9 bushels
Blade Design 0.164 in. / 0.417 cm Steel with Blade Stiffner
Blade Tip Speed 18,179 ft/min / 5,541 m/min
CARB Compliant Not CARB Compliant
Caster Tires 11 in. x 4 in. - 5 in. Pneumatic
Clutch Electromagnetic
Cooling System Air Cooled
Crankshaft 1" (25 mm) w/Steel Protector
Cup Holder Standard
Cutter System Steel Cutting Blade
Cutting Width 34 in / 86 cm
Deck Design 10-Gauge steel IrongForged®
Deck Material 10 Gauge Steel
Discharge Chute Side
Drive System HYDRO
Drive Tires 18 in. x 6 in. - 8 in. (45.7 cm x 15.2 cm - 20.3 cm)
Drive Type Rear-Wheel Drive
Engine 22 hp Briggs and Stratton EXI 724cc
Engine Brand Briggs and Stratton
Engine Displacement (cc) 724 cc
Engine Horsepower 22.0 hp
Engine Power (kW) 16.4 kW
Foot Operated Height of Cut Optional
Forward Ground/Transport Speed Up to 7.0 mph / 11.2 kph
Forward Mowing Speed Up to 7.0 mph / 11.2 kph
Fuel Capacity 3 gal. / 11.4 L / 12 Qt.
Fuel Type Gasoline
Greasable Bearings Yes
Height of Cut 1.5 - 4.5 in. / 3.8 - 11.4 cm
Hitch Bracket Standard
Hour Meter Optional
Hydraulic Dampeners Yes, Non-Cavitating
Hydraulic Drive Standard
Number of Blades 2
Product Use Residential
Recommended Oil Type 10W-30
Roll-Over Protection (ROPS) Optional
Seat 16" Handcrafted
Spindle Bearings Maintenance-free
Spindle Housing Cast-Aluminum
Start Type Electric
Steering Controls Dual Wrap Around Levers
Steering Dampeners Standard Dampers
Terrain Type Flat with Obstacles
Tow Capacity Combined machine, user, towed weight may not exceed 1,000 lbs.
Transmission Dual Hydrostatic HG-EZT2100
Washout Port Standard

Disclaimer

*22 HP gross at 3,600 RPM SAE J1940 and SAE J2723, as rated by Briggs & Stratton®. As configured to meet safety, emission and operating requirements, the actual engine horsepower on this mower may be significantly lower.†See retailer for complete warranty details.‡Specifications subject to change without notice and without incurring obligation. Products depicted are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments and safety features.

Replaces

Toro 77301 34" Fabricated Deck TimeCutter w/ 22HP Briggs Engine replaces these OEM part numbers:

Fits These Models

Additional Information

Product Questions

Customer Questions
Toro 77301 34" Fabricated Deck TimeCutter w/ 22HP Briggs Engine currently has 0 product question(s).

Reviews

Warning Cancer and Reproductive Harm www.P65Warnings.ca.gov

This is a genuine Toro product. Sohars All Season Mower is an authorized Toro Consumer and LCE / Commercial products dealer.

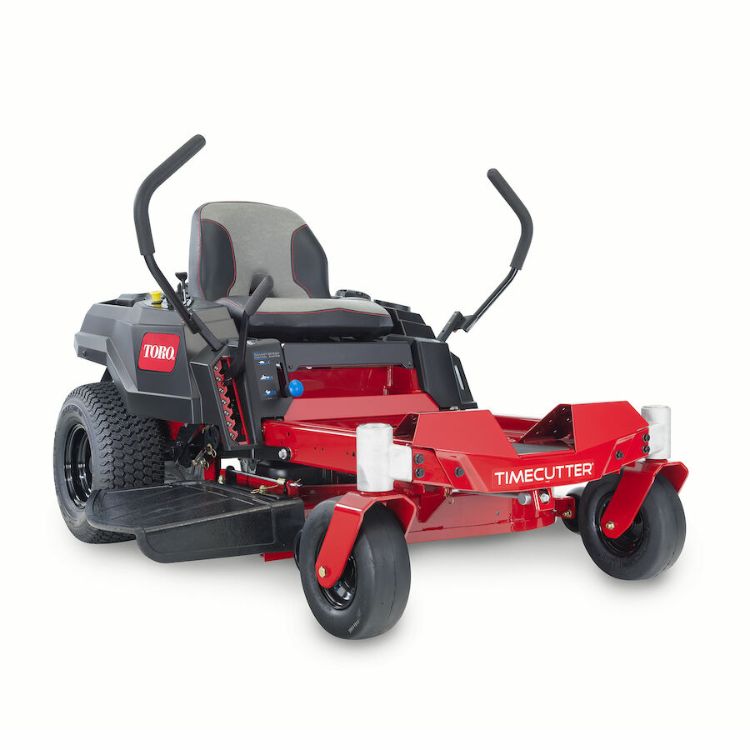

Toro 77301 34" Fabricated Deck TimeCutter w/ 22HP Briggs Engine

Toro
77301
  • Built to tackle big jobs while fitting in small spaces.
  • Built Like a Bull - IronForged® high strength grade 50, 10-gauge steel deck with bull nose reinforced leading edge.
  • Take control over your mowing speed, while never sacrificing blade tip speed.
  • Step-Through Front End - Getting on and off the mower to pick up yard debris and other obstacles is a breeze with a step-through front end.
  • Storage Cubby - Now there's a convenient and safe space in your under-seat cubby to store important items.
  • Ride in style with a handcrafted seat that provides the ultimate in padding and back support.
  • Commercial DNA courses through these machines' veins with the same technology pros depend on.
  • Download the MyToro App from your mobile device's app store for easy access to product resources, including manuals, how-to's, and more.
Price: $3,499.00
